SDI Video Inputs
4 x 1.5G‑SDI or 2 x 3G‑SDI or 1 x 6G‑SDI

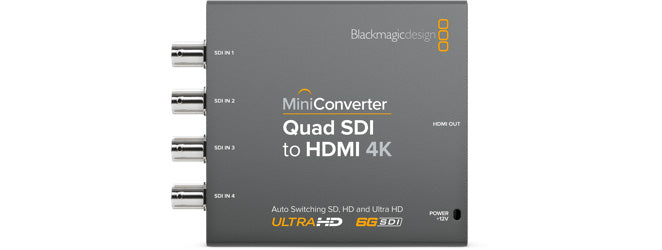

Blackmagic Mini Converter Quad SDI to HDMI 4K 2
Blackmagic SKU: BMD-CONVMBSQUH4K2 | Helix SKU: BMDCONVMBSQUH4K2
Connect Single Link 6G‑SDI, Dual Link 3G‑SDI or Quad Link HD‑SDI to the newest HDMI 4K projectors and televisions that support Ultra HD over a single HDMI link. Includes SD/HD and Ultra HD auto switching.
Connections
SDI Video Outputs
(4K HDMI output only)
HDMI
HDMI type A out.
Multi Rate Support
Auto detection of 6G‑SDI or standard definition on Input 1.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B and SMPTE 425M, SMPTE ST‑2081.
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects SD, HD or 6G‑SDI.
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25,2160p29.97, 2160p30, 4K DCI 2160p24
HDMI Color Space
YUV and RGB
HDMI Color Precision
4:2:2 and 4:4:4
Software
Software Control
Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.
Settings Control
Mini Switches
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
5.2 Watts
Operational Voltage Range
12 ‑ 31V DC

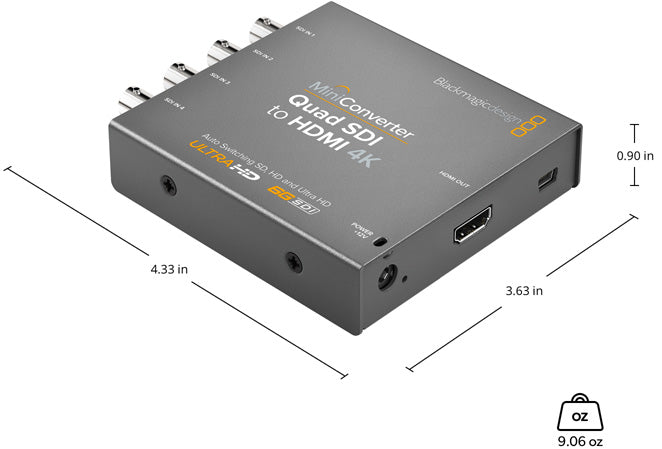

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
‑20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
Mini Converter Quad SDI to HDMI 4K
12V universal power supply with international socket adapters
3 Year Limited Manufacturer's Warranty.
