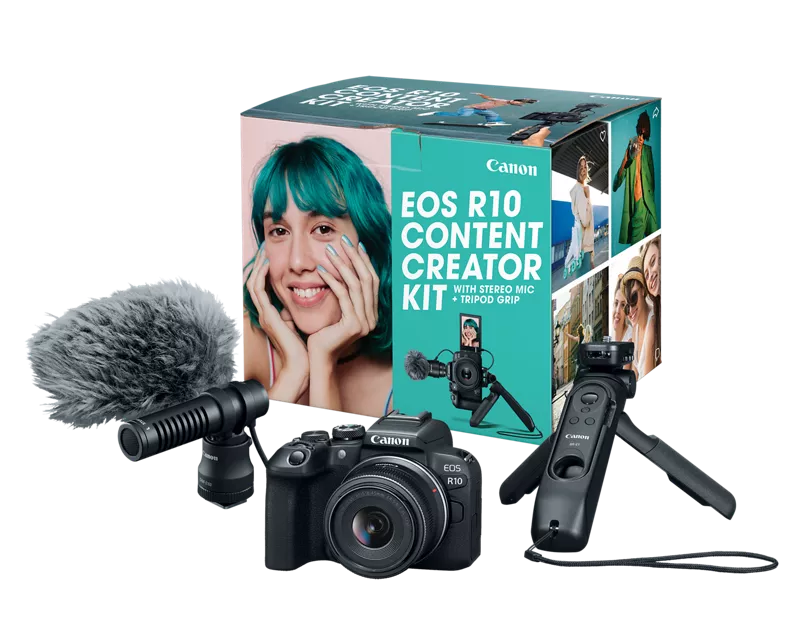

Canon EOS R10 Mirrorless Camera Content Creator Kit

Name: Canon EOS R10 Mirrorless Camera Content Creator Kit
Brand: Canon
SKU: CA5331C079
Price: 1099.00 USD
Availability: OutOfStock

Sold Out

Vendor: Canon

Pin It

Next → ← Previous

Canon EOS R10 Mirrorless Camera Content Creator Kit

Canon SKU: 5331C079 | Helix SKU: CA5331C079

More Than A Upgrade

The EOS R10 is perfect for content creators looking to take their creativity to the next level. Featuring a high-speed shooting 15 FPS mechanical shutter^1,2, a 24.2 Megapixel CMOS (APS-C) sensor, and lightning fast autofocus, the EOS R10 camera brings some of the best features from the growing EOS R Series to a sleek, lightweight design.

CAPTURE SHARP PHOTOS AND VIDEO

Offering high sensitivity, nuanced image quality, and fast overall performance, a 24.2 Megapixel CMOS (APS-C) sensor delivers stunning resolution to fast-action photos taken day or night. Plus, the efficient DIGIC X advanced image processor powers 4K video capture and reduces noise, so you can continuously shoot without worrying about capturing the shot.

FULL FEATURES, SLEEK DESIGN

The easy-to-carry EOS R10 packs advanced features into a lightweight, compact design. Pair with a Canon RF-S/RF lens (or EF/EF-S lens using the Mount Adapter EF-EOS R*) for a high performance setup that fits easily and comfortably in your hand.

CAPTURE FAST-MOVING SUBJECTS IN BRILLIANT DETAIL

With a high-speed shooting 15 FPS mechanical shutter^1,2, the EOS R10 can capture the perfect moment between your subject's movement. This is ideal for dynamic action photos such as sports, animals, cars – or life just as it happens.

SMART, SPEEDY AUTOFOCUS

Canon's Dual Pixel CMOS AF technology with people, animal³, and vehicle subject detection lets you keep your eye on the action while it holds your subject in crystal clear focus.

RECORD EACH CLIP OVER 30 MINUTES

Set up your video without worrying about it stopping after 30-minutes⁴.

OPTIMIZED FOR VIDEO

Get professional-grade 4K video on-the-go with Movie Servo AF, an autofocus system that includes subject detection and subject tracking for quicker shooting and a stronger focus.

COMPATIBILITY WITH FULL RANGE OF CANON RF-S, RF, EF, EF-S MOUNTS*

Backwards compatible, future proof. Enjoy full compatibility with Canon's legendary line up of lenses past, present and future.

Specifications

Type

Type	Digital single-lens non-reflex AF/AE camera
Image Processor	DIGIC X
Recording Media	SD card SD card speed class-compatible. Compatible with UHS-II Eye-Fi cards and Multimedia cards (MMC) are not supported.
Compatible Lenses	Canon RF-S/RF lens group (excluding EF, EF-S and EF-M lenses) When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount	Canon RF Mount

Image Sensor

Type	CMOS sensor (compatible with Dual Pixel CMOS AF)
Effective Pixels	Approx. 24.2 megapixels
Sensor Size	Approx. 22.3 x 14.9 mm
Pixel Size	Approx. 3.72 µm square
Total Pixels	Approx. 25.5 megapixels
Aspect Ratio	3:2 (Horizontal: Vertical)
Color Filter System	RGB primary color filters
Low Pass Filter	Installed in front of the image sensor, non-detachable
Dust Deletion Feature	Self Cleaning Sensor Unit Removes dust adhering to the low-pass filter. At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 7 sec. as indicated on the screen). After manually activated cleaning, the camera will automatically restart (Power OFF to ON). When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected. Dust Delete Data acquisition and appending The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images. The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software to automatically erase the dust spots. Not available in focus bracketing, RAW burst mode, or multiple-exposure shooting. Manual cleaning (by hand)

White Balance

Settings	Auto (Ambience priority/White priority) Day Light Shade Cloudy¹ Tungsten light White fluorescent light Flash Custom² (Custom WB) Color temperature ¹Effective also in twilight and sunset. ²Setting method options include [Custom White Balance] and [Shoot to set WB].
Auto White Balance	Option between ambience priority and white priority settings.
White Balance Shift	Blue/amber bias: ±9 levels Magenta/green bias: ±9 levels Corrected in reference to the current WB mode's color temperature. Blue/amber and magenta/green shift can be set at the same time.

Viewfinder

Type	OLED color electronic viewfinder; approx. 2.36 million dots resolution
Coverage	Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 22mm eyepoint).
Magnification/Angle of View	Approx. 0.95x / Approx. 28 degrees (with 3:2 display, a 50mm lens at infinity, -1 m-^-1)
Eye Point	Approx. 22mm (at -1 m-1 from the eyepiece lens end)
Dioptric Adjustment Range	Approx. -3.0 to + 1.0 m^-1 (dpt)

Autofocus

Focus Method

Dual Pixel CMOS AF

Number of AF Zones Available for Automatic Selection

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%*
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x 17)

AF Working Range

EV -4 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at room temperature, ISO 100)
* Except RF lenses with a Defocus Smoothing (DS) coating.

Focusing Brightness Range (Movie Recording)

Full HD 29.97fps : EV -3.5 to 20
With an f/1.2 lens*, center AF point, One-Shot AF,at room temperature, ISO 100
* Except RF lenses with a Defocus Smoothing (DS) coating.

AF Methods

AF Method

Whole area AF

Spot AF

1-point AF

Expand AF Area
(Above, below, left and right/Around)

Expand AF Area: Around

Flexible Zone AF 1,2,3

Subject to Detect

People, Animals, Vehicles, No Priority
* Available with [AF Area] set to Whole area AF

Focus Mode Switch

AF / MF

Applies when an RF or RF-S lens without a focus mode switch is attached.
When lenses with a focus mode switch are attached, the setting on the lens takes precedence.

Exposure Control

Metering Modes

Real-time metering with image sensor (384 [24x16 zone metering])

Evaluative metering
Partial metering (approx. 5.8% of the area at the center of the screen)
Spot metering (approx. 2.9% of the area at the center of the screen)
Center-weighted average metering

Metering Range

Still Photo Shooting : EV -2 to 20 (at room temperature, ISO 100)
Movie Recording: EV 0 to 20 (at room temperature, ISO 100)

Exposure Control Modes

Click here to view full specifications PDF

ISO Speed Range

Available ISO speeds; user-set

Normal	ISO 100-32000 (in 1/3- or 1-stop increments)
Expanded	H (equivalent to ISO 51200)

For [Highlight tone priority], the settable ISO speed range will be ISO 200 to 32000.
Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.

User-defined ISO range - still photo shooting

ISO Speed Range	ISO Speed
Minimum	L 100 - 32000 (in 1-stop increments)
Maximum	ISO 200 - H (51200) (in 1-stop increments)

* Expanded ISO speeds are noted as being equivalent to these speeds.

User-defined Auto ISO range - still photo shooting

Auto Range	ISO Speed
Minimum	ISO 100-25600 (in 1-stop increments)
Maximum	ISO 200-32000 (in 1-stop increments)

ISO Auto details in still photo shooting

Shooting Mode		No Flash	Using Flash
Variable control of maximum ISO Auto limit for E-TTL			Compatible lens	Incompatible lens
Creative Zone	P	ISO 10012-32000*²	ISO 100^12-6400²	ISO 100^12-6400²
	TV
	AV
	M
	B	ISO 400*³	ISO 400*³	ISO 400*³
Basic Zone	A+	ISO 100-6400	ISO 100-6400	ISO 100-3200
	SCN	Varies by shooting mode
	Creative Filters	Varies by shooting mode

*¹ ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
*² Varies depending on [Maximum] and [Minimum] of [Auto range].
*³ If outside the setting range, changed to the value most close to ISO 400.

Exposure Compensation

	Photo	Movie
Manual	±3 stops in 1/3- or 1/2-stop increments
AEB	±3 stops in 1/3- or 1/2-stop increments

AE Lock

Auto AE lock
- The metering mode for AE lock after one-shot focus can be customized in the AE lock meter menu.
User-applied AE lock
- In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
- Enabled in all metering modes.

Shutter

Type

Mechanical
Electronic 1st-Curtain
Electronic Shutter (1st and 2nd curtain - silent*)

* A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
* In electronic shutter shooting under conditions such as flash firing by other cameras or with fluorescent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.

Shutter Speeds

When [Mechanical] or [Elec. 1st- curtain] is set: 1/4000-30 sec, bulb
When [Electronic] is set: 1/4000-30 sec.

X-Sync Speed

Mechanical Shutter: 1/200 sec.
Elec. 1st-curtain: 1/250 sec.

Shutter Release

Soft-touch electromagnetic release

Self Timer

10-sec. delay, 2-sec. delay

Shutter Lag Time

	Mechanical Shutter	Electronic 1st Curtain	Electronic shutter
*Shutter-release time lag Measured with shutter button pressed fully from half-pressed position**	Approx. 100ms	Approx. 50 ms	Approx. 50 ms

Based on Canon testing standards.

Image Stabilization (IS Mode)

IS Mode Overview

Although the camera has no in-body IS, setting to Movie digital IS during movie recording will enable digital image stabilization.

Item	Still photo shooting	Movie recording
Lens IS mode	On / Off	On / Off
Movie digital IS	On / Off*¹	Off / On / Enhanced
Still photo IS	-	-
Focal length setting	-	-

Simultaneous use of IS mode and Movie digital IS is supported in movie recording.

*1: Functions when recording movies in still photo shooting mode.

External Speedlite

E-TTL Balance

Ambience priority, standard, flash priority

Compatible E-TTL Speedlites

Canon EX- and EL-series Speedlites

E-TTL II Flash Meterings

Evaluative (Face Priority)
Evaluative
Average

Slow Sync (P/AV Modes)

Mechanical Shutter	Electronic 1st curtain
1/200-30 sec. auto	1/250-30 sec. auto
1/200-1/60 sec. auto	1/250-1/60 sec. auto
1/200 sec. (fixed)	1/250 sec. (fixed)

Flash Function Menu

Provided for EX- and EL-series Speedlites

Flash Exposure Compensation

±3 stops in 1/3- or 1/2-stop increments

Continuous Flash Control

E-TTL each shot
E-TTL 1st shot

Drive System

Drive Modes and Continuous Shooting Speed	Click here to view full specifications PDF
Still Photo File Size/Number of Possible Shots/Maximum Burst Continuous Shooting	Click here to view full specifications PDF

HDR Shooting and Movie Recording

HDR PQ Shooting

Disable / Enable
* Can be used in conjunction with Auto Lighting Optimizer.

HDR PQ Shooting - Still

Recording format	Bit depth	Color sampling method	HDR specification
HEIF	10 bit	YCbCr 4:2:2	Rec. ITU-R BT.2100 (PQ)

HDR PQ Shooting - Movie

Recording format	Bit depth	Color sampling method	HDR specification
MP4	10 bit	YCbCr 4:2:2	Rec. ITU-R BT.2100 (PQ)

Video Shooting

Focusing	Dual Pixel CMOS AF II
Movie Digital IS	Supported
Exposure Compensation	±3 stops in 1/3- or 1/2-stop increments
Canon Log	Not supported
Temperature Warning	The camera warns of rising internal temperatures by means of icons and indicators. Click here to view full specifications PDF
Estimated Camera Recovery Time	Estimated recovery times are indicated below. These are affected by various factors such as ambient temperature, continued camera operation and the selected shooting resolution. The time until full record time is available, will vary with ambient temperature. Click here to view full specifications PDF
Movie Recording Format	Click here to view full specifications PDF
Estimated Recording Time and Data	Click here to view full specifications PDF

LCD Screen

Type	TFT color, liquid-crystal monitor
Monitor Size	3.0-inch (screen aspect ratio of 3:2)
Dots	Approx. 1.04 million dots
Coverage	Approx. 100% vertically/horizontally
Brightness Control	Manually adjustable to one of seven brightness levels
Interface Languages	29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

Display Format

Item	Still Photo	Movie
Item	Still Photo	-
Magnify zoom display	1.5x-10x (5 levels)	-
AF point display	Yes	-
Grid display	Off / 3x3 / 6x4 / 3x3+diag	-
Rating	OFF / 1 to 5 Stars Select images / Select range / All images in folder / All images on card / All found images
Image Search	Search conditions Rating / Date / Folder / Protect / Type of file (1) / Type of file (2)
Protect	Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images
Cloud RAW image processing	Supported	-
RAW image processing	Supported
RAW Burst processing	Supported
HEIF -> JPEG Conversion	Supported	-
Cropping	Supported	-

Highlight Alert

The white areas with no image data will blink.

Histogram

Brightness and RGB

Quick Control Function

Function

The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

Image Protection and Erase

Protection

Single image (select image)
Select range
All images in a folder
All images on card
Unprotect all images on card
All found images (only during image search)
Unprotect all found images

Erase

Except protected images

Select images to erase
Select range
All images in folder
All images on card
All found images

Direct Printing

Wireless Communications

Images can be sent via Wi-Fi to a PictBridge-compatible (Wireless LAN) printer and printed.

DPOF: Digital Print Order Format

DPOF

Compliant to DPOF Version 1.1

Wi-Fi

Standards Compliance

IEEE 802.11b/g/n

Transmission Method

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)

Transition Frequency (Central Frequency)

2.4 GHz band
Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels

Security

Connection Method	Authentication	Encryption
		Encryption	Key Format and Length
Camera Access Point	WPA2/ WPA3-Personal	AES	ASCII 8 characters
	Open	Disable
Infrastructure	Open	WEP	Hexadecimal 10 digits Hexadecimal 26 digits ASCII 5 characters ASCII 13 characters
		Disable
	Shared key	WEP	Same as WEP above
	WPA-PSK WPA2-PSK WPA3-Personal	TKIP AES	1-127 characters

Communication with a Smartphone

Images can be viewed, controlled, and received using a smartphone.
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
Images can be sent to a smartphone.
Firmware can be downloaded and saved to a card in the camera using Camera Connect.

Remote Operation Using EOS Utility

The camera can be controlled via Wi-Fii® using EOS Utility.

Print from Wi-Fi Printers

Supported.

Send Images to a Web Service

Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
With the image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).

Bluetooth

Standards Compliance	Bluetooth Specification Version 4.2 compliant (Bluetooth low energy technology)
Transmission Method	GFSK modulation

Customization

Custom Functions

Still photo	Movie
Shutter button (half-press)	Yes	-
Movie shooting button	Yes	-
Multi-function () button	Yes	Yes
ISO speed button	Yes	Yes
AF-ON button	Yes	Yes
AE lock (<*>) button	Yes	Yes
AF point button	Yes	Yes
DOF preview button	Yes	Yes
Lens function () button	Yes	Yes
Cross keys: Up button	Yes	Yes
Cross keys: Left button	Yes	Yes
Cross keys: Right button	Yes	Yes
Cross keys: Down button	Yes	Yes
Set button	Yes	Yes
Multi-controller	Yes	Yes

Custom Dials

Customizable Dials

Main dial

Quick control dial

Control ring

My Menu Registration

Up to six top-tier menu items and Custom Functions can be registered.
Up to five My Menu tabs can be added.

My Menu tab overall operations	Adding a tab Deleting tabs in a batch Deleting all tab items Setting the menu display
My Menu tab detailed operations	Selecting a registered item Sorting registered items Deleting selected registered items Deleting registered items in a batch Deleting tabs Changing a tab name (16 ASCII characters)

Interface

USB Terminal	Hi-Speed USB (USB 2.0) equivalent Terminal type: USB Type-C For computer communication / smartphone communication USB battery charging / camera power supply
Video Out Terminal	HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible Images can be displayed through the HDMI output and on screen at the same time. Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
Clean HDMI Output	Provided
Microphone Input Terminal	3.5mm diameter stereo mini jack
Headphone Terminal	Not Supported
Remote Control Terminal	Remote Switch RS-60E3 type terminal supported
Wireless Remote Control	Compatible with the Wireless Remote Control BR-E1
Multi-Function Shoe	Supported

Power Source

Battery	LP-E17 With the USB Power Adapter PD-E1, in-camera charging is possible when camera is off.
Battery Check	Automatic battery check when the power switch is turned ON. Displayed in 4 levels
Start-Up Time	Approx. 0.4 sec. Based on CIPA testing standards.

Dimensions and Weight

Dimensions (W x H x D)	Approx. 4.82 x 3.46 x 3.28 in. / 122.5 x 87.8 x 83.4mm Based on CIPA standards.
Weight	Approx. 0.84 lbs (13.48 oz) Body Only Approx. 0.94 lbs (15.14 oz) With battery,and memory card

Operating Environment

Working Temperature Range	32-104° F / 0-+40°C
Working Humidity	85% or less

*Note: Prices and specifications subject to change without notice.

Canon EOS R10 Mirrorless Camera Content Creator Kit

Canon EOS R10 Mirrorless Camera Content Creator Kit

Specifications

Type

Image Sensor

White Balance

Viewfinder

Exposure Control

Shutter

Image Stabilization (IS Mode)

External Speedlite

Drive System

HDR Shooting and Movie Recording

Video Shooting

LCD Screen

Playback

Quick Control Function

Image Protection and Erase

Direct Printing

DPOF: Digital Print Order Format

Wi-Fi

Bluetooth

Customization

Interface

Power Source

Dimensions and Weight

Operating Environment

Questions & Answers

Popular Questions

Footer

Sign Up for our Newsletter
