SeaLife Sea Dragon 2500 Photo/Video Light
$ 499.00
SeaLife Sea Dragon 2500 Photo/Video Light
SeaLife SKU: SL671 | Helix SKU: SL671
Overview
Powerful 2500 lumen LED light using the latest COB LED array technology
One button control for easy operation - one button to power light on/off and select brightness
Three brightness levels: 100%, 50% and 25%
Hidden emergency signal mode: 1 second blink interval and SOS Morse code
60 minute burn time at full power and constant brightness
Depth rated to 200 feet/60 meters
Easy to expand with Flex-Connect™ trays, grips and Flex Arms, handle, Y-S, ball joint, cold shoe and other accessories
Quick-release button to detach light and aim in crevices and hard to reach areas
120° wide beam angle evenly illuminates the subject with no hot spots (90° underwater)
Corrosion-proof metal light head for heat dispersion and durability
Removable 25W Li-Ion battery w/ charger and international plug adapters included
Waterproof battery compartment - even if the O-ring seal fails, the battery compartment is isolated so water cannot reach the internal electronics
Universal mounting screw fits SeaLife and other brands of underwater cameras w/ standard ¼-20 tripod mount
What's In The Box
Sea Dragon 2500 Underwater Photo/Video Light head
Flex-Connect Single Tray w/ standard ¼-20 mounting screw
Flex-Connect grip
25Wh Lithium Ion rechargeable battery
AC Power Adapter, charging tray, and international plug adapters
Adapter for GoPro cameras with acorn nut
Spare O-rings, O-ring lubricant, O-ring removal tool
Instruction manual
Sea Dragon Case
Specifications
Sea Dragon 2500 Photo/Video/Dive Light Specifications
| Body Material | Anodized aluminum light head with fiber-reinforced polycarbonate body |
| Light Source/Bulb Type | 1 x COB LED array (COB - Chip On Board) |
| Brightness | 2500 lumens (maintains 2500 lumens throughout burn time at full power) |
| Effective Range | 4 ft/1.2 m (depends on camera model and visibility) |
| Brightness Levels | Full power (100%), half power (50%), and quarter power (25%) |
| Button Control | Long push (1 sec) to power light on/off; Short push cycles through 100% → 50% → 25% → 100% [repeat cycle] |
| Light Modes | Constant light or emergency signal light (activated by long push of power button); one second flash or SOS at full power |
| Color Temperature | 5000K |
| Color Rendering Index* | 90 |
| Beam Angle | 120 degrees (90-degrees underwater) |
| Battery | Lithium Ion 7.4V, 3400 mAh, 25Wh (included) |
| Battery Charge Time | 170 minutes |
| Run Time | 60 minutes at full power/120 minutes at half power/240 minutes at quarter power |
| Depth | Tested to 200 feet/60 meters |
| Dimensions |
4.8" x 2.2" x 3.8" (12.2cm x 5.6cm x 9.7cm), head only |
| Weight | 9oz (255g) head only without battery ; 12.9oz (365g) head with battery |
| Bulb Life | 35,000 hours |
| O-ring | Dual NBR o-rings (lube included) |
| Buoyancy |
Negative |
*CRI is a measure of a light source's ability to show object colors "realistically" or "naturally" compared to daylight, which has a CRI of 100 and represents the maximum value.
The beam angles for the Sea Dragon lights are shown as the true, tested “in-air” (above water) beam angle. Underwater, due to light refraction, the angle tightens to approximately 33% less.
Avoid using this Sea Dragon light above water for prolonged periods of time
The light is designed for underwater use and water is needed to displace heat. The metal light head at full power will reach temperature of about 140F (60C) degrees within a few minutes, which may cause burning if touched. A thermal sensor will automatically dim the light if internal temperatures reaches 150F (65C) degrees. Immediately turn off light if any parts of the light become hot to the touch.
Ikelite Flex Mount for Quick Release Handle
$ 24.95 - Sold Out
Ikelite Flex Mount for Quick Release Handle - IK957331
Mounts to the Ikelite Quick Release Handle for attachment of 3/4 in flex arms.
Ikelite DL 20mm Port Extension
$ 199.95
Ikelite DL 20mm Port Extension - IK75020
Ikelite Gamma II Waterproof LED Flashlight (Silver)
$ 99.95
Ikelite Gamma II Waterproof Flashlight - IK1821
Sea & Sea O-Ring Kit MM-I - #01800 - NEW FOR MOTOR MARINE I/MX10 - LAST ONE
$ 12.00 - Sold Out
Sea & Sea O-Ring Kit MM-I - #01800 - NEW FOR MOTOR MARINE I/MX10 - LAST ONE
Ikelite ULTRAcompact Housing f/Panasonic TS5/TS6/FT5/FT6
$ 259.95 - Sold Out
Ikelite ULTRAcompact Housing f/Panasonic TS5/TS6/FT5/FT6
Ikelite SKU: 6270.06 | Helix SKU: IK627006
Overview
Features
Dive into underwater photography with this compact and easy to use system. Durable clear polycarbonate construction provides a unique view of the camera to ensure correct waterproof installation and confidence underwater. The camera installs with drop-in loading for quick and easy set up. Simply close the side latch and see the o-ring form a solid black, watertight seal. Large, ergonomic controls provide access to all important camera functions.
The nature of this camera's lens prevents the effective use of external wide angle lenses.
Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.
Flash
An included flash diffuser improves lighting quality when the camera's built-in flash is used. A built-in flash is effective between 1-3 feet (0.3-0.9m) from the subject in clear conditions. For best results a color correcting filter or external lighting is recommended. External lighting is more powerful and can be placed in a position to virtually eliminate the backscatter - or "snow" - from your underwater images.
Two fiber optic ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords.
Compatibility
The Panasonic LUMIX TS6 and FT6 cameras may also be used in the previous model housing built for the Panasonic LUMIX TS5 and FT5 cameras, item # 6270.05. However, very minor vignetting (dark shadows in the corners of the images) will be present. The lens port of this housing has been modified to be free of vignetting with both older and newer camera models.
Specifications
200 ft (60m) depth rating
Controls for all camera functions
Near neutral buoyancy in fresh water
12-24 thread tray mounting with 3" (76mm) spacing
1 lb (450 g)
5.9 x 4.7 x 3.0-inch (15 x 11.9 x 7.6 cm)
2.2" diameter glass lens port
In the Box
Housing
O-ring # 0132.45
Port cover # 0200.02
Lanyard # 0321.10
Silicone lubricant # 0184.1
1 year limited warranty

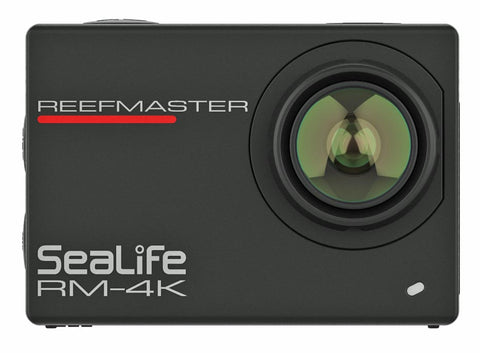

ReefMaster RM-4K Camera
$ 299.00

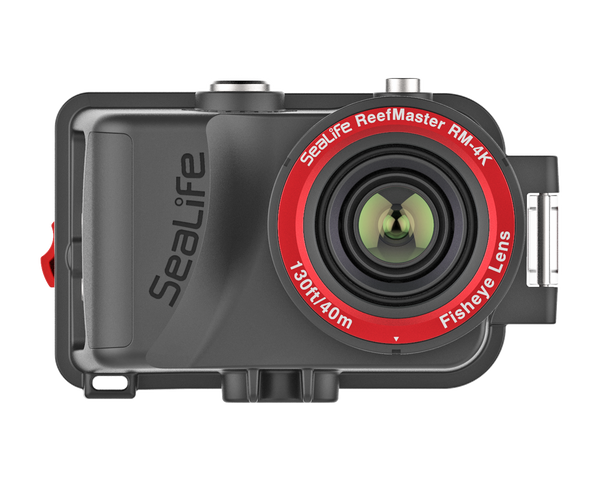

SeaLife ReefMaster RM-4K Underwater Camera and Housing
