Fotodiox Pro Lens Mount Adapter - Hasselblad H-Mount Digital Backs to Large Format 4x5 View Cameras with a Graflok Rear Standard - Shift / Stitch Adapter with Focusing Screen


MFR SKU:  HBH-4x5-Pro | Helix SKU: FX HBH4x5Pro

Overview

Product Highlights:

  • Mount a modern camera sensor onto 4x5 view cameras and utilize correction movements (tilts/shifts/swings)
  • Preview the full image before taking the first shot with the built in composition screen
  • Composition screen has dovetail tracks for various focusing accessories
  • Multiple exposures are in a linear array, perfect for flat-stitching to reduce distortion errors inherent in spherical stitching
  • 24 Month Manufacturer Warranty

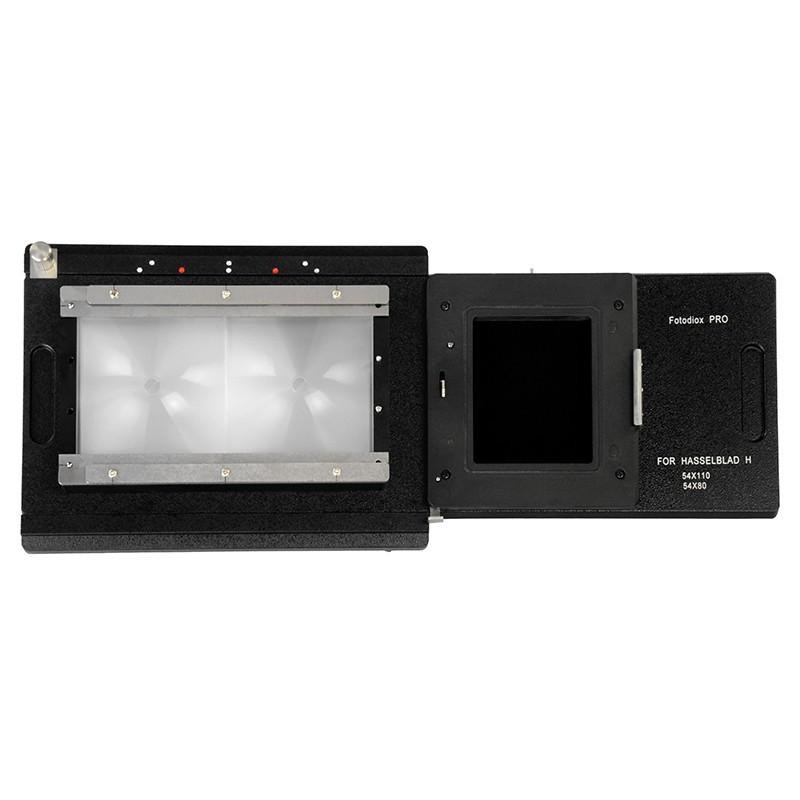

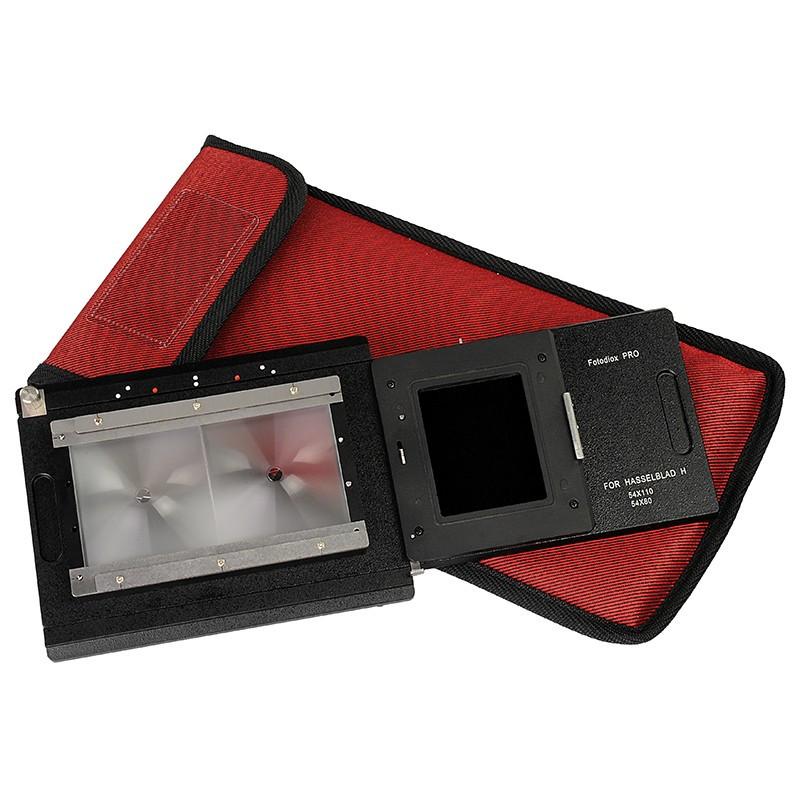

Ever think about using a fantastic Large Format 4x5 camera with a Hasselblad H-Mount film or digital back? Here is your solution! With this adapter you can mount your film or digital back onto popular large format 4x5 view cameras (works on all 4x5 cameras with the standard with graflok back, such as: Cambo, Linhof, Calumet, Horseman, Omega, Toyo, Kodak). This adapter board mounts the backs in a vertical position and slides from side to side allowing more of the scene to be scanned and captured. The sliding board allows focusing and shooting to be done without mounting a separate focusing screen then swapping it out for a digital/film back and vice verse; just slide the full frame focusing screen into place to make the needed tilt/swing/shift adjustments on the camera, then slide the back over to the appropriate marks to fire the shots.

The entire digital image can be compiled using your computer. The sliding adapter allows you to 'scan' the 4x5 back so the multiple images can be stitched together using image editing software into a giant mega-file with amazing detail and clarity! The sliding board has incremental markings to help with positioning and a tension screw lock to keep the sliding board in place during shooting. This Fotodiox Pro-Series mount adapter is machined with pristine precision for the best possible fit. As with all Pro-series adapters, these have been specially crafted to endure professional lenses and repeated use. With unique styling, the lens mount adapter maintains/enhances the professional appearance.

Compatible Cameras:
Cambo, Linhof, Calumet, Horseman, Omega, Toyo, Kodak with graflok back

Lens Mount Large Format 4x5 View Cameras with a Graflok Rear Standard
Camera Mount Hasselblad H-Mount Film/Digital Back
Manufacturer Fotodiox Inc.
Warranty 24 Months


Note:



  • The appropriate cable to connect the digital back to the lens is required for use, the cable is not included.
  • This is a manual adapter, so lens functions that rely on electronic communication with the camera body (autofocus, AE metering, image stabilization, etc.) will be disrupted.
  • 'Focus-By-Wire' lenses (such as Canon's STM or Nikons AF-P) requires power to engage the manual focus rings on the lens, since manual lens mount adapters do not power the lens, those lenses will not be able to focus.
  • Set your exposure manually or meter using your camera's Aperture Priority (stop-down) mode.
  • If your lens does not have a manual aperture control ring, the lens aperture will revert to its default position, which depending on the lens is either stopped down to its largest f-stop or opened up to its smallest f-stop.





All pictures are for illustration purposes only. Actual product may vary slightly due to ongoing improvements in design.
