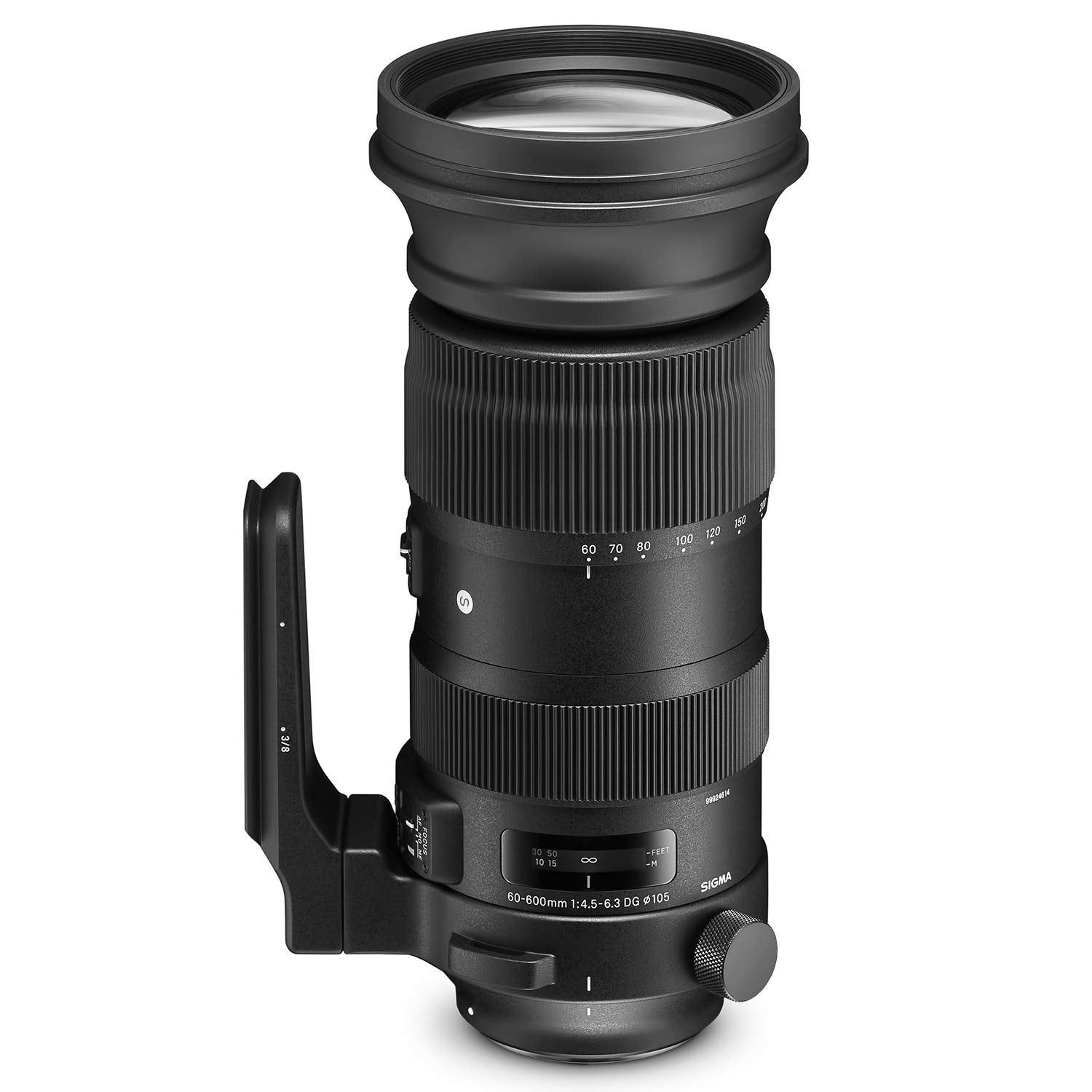

Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Nikon


Vendor: Sigma


Pin It

Next → ← Previous

Sigma 60-600mm F4.5-6.3 DG OS HSM | S - Nikon

Sigma SKU: 730955 | Helix SKU: SM730955

The Sigma 60-600mm F4.5-6.3 DG OS HSM Sports is the world’s first 10x optical zoom telephoto lens with a tele end of 600mm. Incorporating 25 elements in 19 groups, excellent and consistent image quality can be achieved throughout the entire zoom range. This lens’ intelligent OS featuring the latest algorithm delivers an image stabilization effect of 4 stops. Its optical design ensures maximum correction of magnification chromatic aberration encountered in hyper-telephoto shooting. This offers both high resolution and consistent edge-to-edge performance throughout the entire zoom range. In addition, when shooting at the focal length of 200mm, the Sigma 60-600mm F4.5-6.3 DG OS HSM Sports can also be used for telephoto macro photography, with a maximum magnification ratio of 1:3.3, thanks to its high rendering performance. Its multi-material build, which incorporates magnesium among other components, ensures durability and enhances portability, allowing for comfortable handling of the 10x zoom lens. The zooming mechanism has been engineered to make both smooth rotation and straight zoom possible. Versatile and robust, the new Sigma hyper-telephoto zoom lens is available in Sigma, Canon and Nikon mounts.

INCORPORATING MULTI-MATERIAL TO
ACHIEVE BOTH PORTABILITY AND DURABILITY

To achieve comfortable handling required for a 10x zoom lens while maintaining high optical quality, the SIGMA 60-600mm F4.5-6.3 DG OS HSM | Sports incorporates multi-material, such as magnesium, CFRP*3, and TSC*4 . The use of these superior materials in the right place reduces the weight of the overall lens to enhance portability and ensure durability.

  • *3 Carbon fiber reinforced plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
  • *4 Thermally Stable Composite (TSC) offers thermal expansion characteristics similar to those of aluminum. Since parts made with TSC expand and contract less due to changes in temperature, they tend to perform better under extreme conditions and help maintain the performance of the lens. TSC also offers outstanding elasticity. Compared to polycarbonate containing 20% glass, TSC offers approximately 70% higher elasticity. Compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.)
  • water- and oil-repellent coating

    Forefront and rear lenses incorporate a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

  • Dust-proof and splash-proof construction

    This lens features a highly effective dust- and splash-proof structure with special sealing at the mount connection, manual focus ring, zoom ring,

  • and cover connection, allowing photographers to work in all types of weather.

  •   Intelligent OS

    This lens incorporates Intelligent OS*1 adopting the latest algorithm to deliver an image stabilization effect of 4 stops*2.

    1. horizontally, vertically, or diagonally—regardless of the position of the lens.
    2. Based on CIPA guidelines (Measured in 600mm with a 35mm full-size image sensor)
  •   High-speed AF

    The HSM (Hyper Sonic Motor) ensures high speed and quiet AF.

FLEXIBLE ADJUSTMENT

  • Tripod socket

    Tripod socket with high usability

    • With 90° click stops
    • Replaceable lens foot
    • Compatible with Arca Swiss tpe clamps



LENS CONSTRUCTION

 Lens Construction

SPECIFICATIONS

Lens Construction 25 Elements in 19 Groups
Angle of View 39.6º- 4.1º
Number of Diaphragm Blades 9
Mininum Aperture F22-F32
Minimum Focusing Distance 60-260cm / 23.6-102.4in.|
Filter Size (mm) 105mm
Maximum Magnifications 1:3.3 (200mm)
Dimensions
(Diameter x Length)
ø120.4mm x 268.9mm/ ø4.7in. x 10.6in.
Weight 2,700g / 95.2oz.
Corresponding Mounts
Sigma

HSM
OS
DG

Nikon HSM
OS
DG
Canon HSM
OS
DG

HSM -Hyper-Sonic Motor
DG- compatible with both full frame and APS-c size sensor cameras

* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

 DIFFRACTION MTF CHART

 Diffractional MTF

GEOMETRICAL  MTF CHART

 Geometrical MTF

EFFECTIVE DISTORTION

Effective Distortion

RELATIVE DISTORTION

Relative distortion

VIGNETTING

 Vignetting
