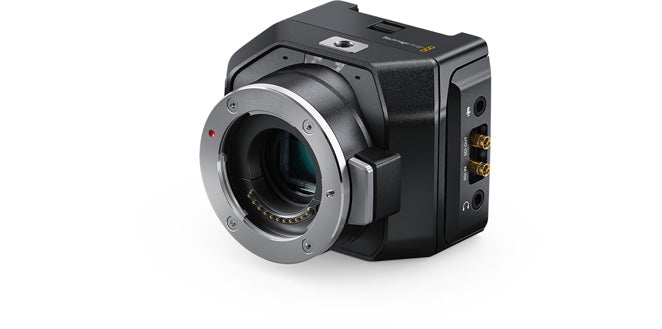

Blackmagic Micro Studio Camera 4K 2
Blackmagic SKU: BMD-CINSTUDMFT/UHD/MR | Helix SKU: BMDCINSTUDMFTUHDMR
The Blackmagic Micro Studio Camera 4K is an incredibly tiny Ultra HD resolution camera that can be used in HD and Ultra HD video formats that can be fully controlled from the switcher via the SDI control protocol. Blackmagic Micro Studio Camera 4K includes 6G-SDI connections, built in color corrector, talkback, tally indicator, PTZ control output, built in microphones, backup battery, an adaptable MFT lens mount and B4 lens control output.
Camera Features
Effective Sensor Size
13.056mm x 7.344mm
Shooting Resolutions
3840 x 2160,
1920 x 1080, 1280 x 720
Lens Mount
Active MFT Mount.
Lens Control
Iris, focus,
zoom on supported lenses.
Focus
Remote focus control via expansion
connector or Blackmagic SDI Control
Protocol when using compatible lenses.
Dynamic Range
11 Stops.
Mounting Options
1 x 1/4 inch (top),
3 x 1/4 inch (bottom).
Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI, 1 x HDMI Monitoring.
SDI Rates
1.5G, 3G, 6G
Optical SDI
None
SDI Audio Outputs
2 channel embedded
audio support in SDI stream.
HDMI Video Outputs
1 x HDMI Type A output.
HDMI output is always HD, up to 1080p60.
HDMI Audio Outputs
2 channels 48 kHz and 24-bit.
Expansion Port
DB-HD15 serial connector provides support for:
Power input
LANC input
1 x S.Bus input
PTZ output
B4 lens control output
Reference Input
Analog Audio Input
1 x 3.5mm jack, mic or line level.
Analog Audio Output
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Input
Tri-Sync or Black Burst on expansion connector.
Screen Dimensions
None
Remote Control
Remote control over SDI via Blackmagic SDI Control Protocol or via expansion port using LANC or S.Bus.
Computer Interface
USB Mini-B port for software updates and configuration.
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
None
Standards
SD Video Standards
None
HD Video Standards
720p50, 720p59.94, 720p60 1080p23.98,
1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,
1080p60
1080i50, 1080i59.94 and 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24,
2160p25, 2160p29.97 and 2160p30
SDI Compliance
SMPTE 292M, SMPTE 424M, SMPTE 2081-1
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Media
Media
None
Media Format
None
Supported Codecs
Codecs
None
Control
Controls
5 control buttons including Set, Up,
Down, Menu, and Power.
External Control
Blackmagic SDI Control Protocol. Expansion connector has LANC, S.Bus and PWM for lens and other settings control.
Color Corrector
Color Corrector
DaVinci YRGB.
Talkback and Tally
Live Tally Indicator
1 x for talent.
Talkback
SDI Channels 15 and 16.
Software
Software Included
Blackmagic Camera Setup.
Operating Systems
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.
Power Requirements
Power Supply
1 x External 12V power supply. LP-E6 Lithium-Ion battery included.
Battery Life
Approximately 1 hour 10 minutes.

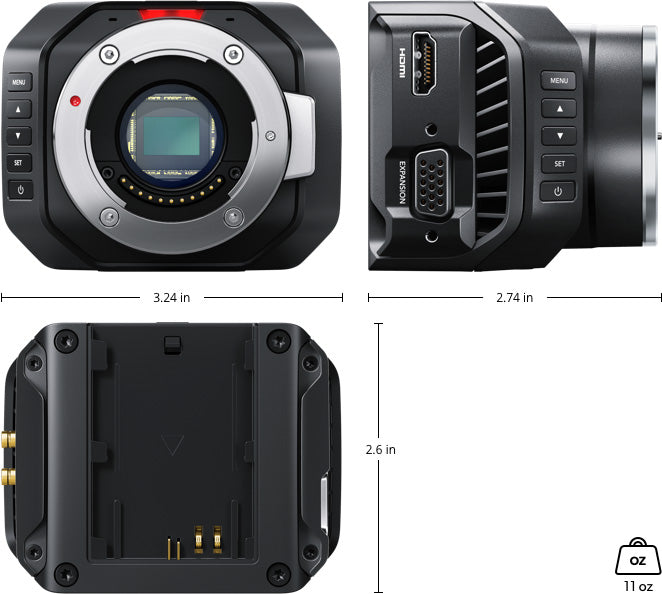

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Blackmagic Micro Studio Camera 4K
Expansion cable
LP-E6 battery
Turret dust cap
12V AC Adapter
SD card with software and manual
12 Month Limited Manufacturer's Warranty
